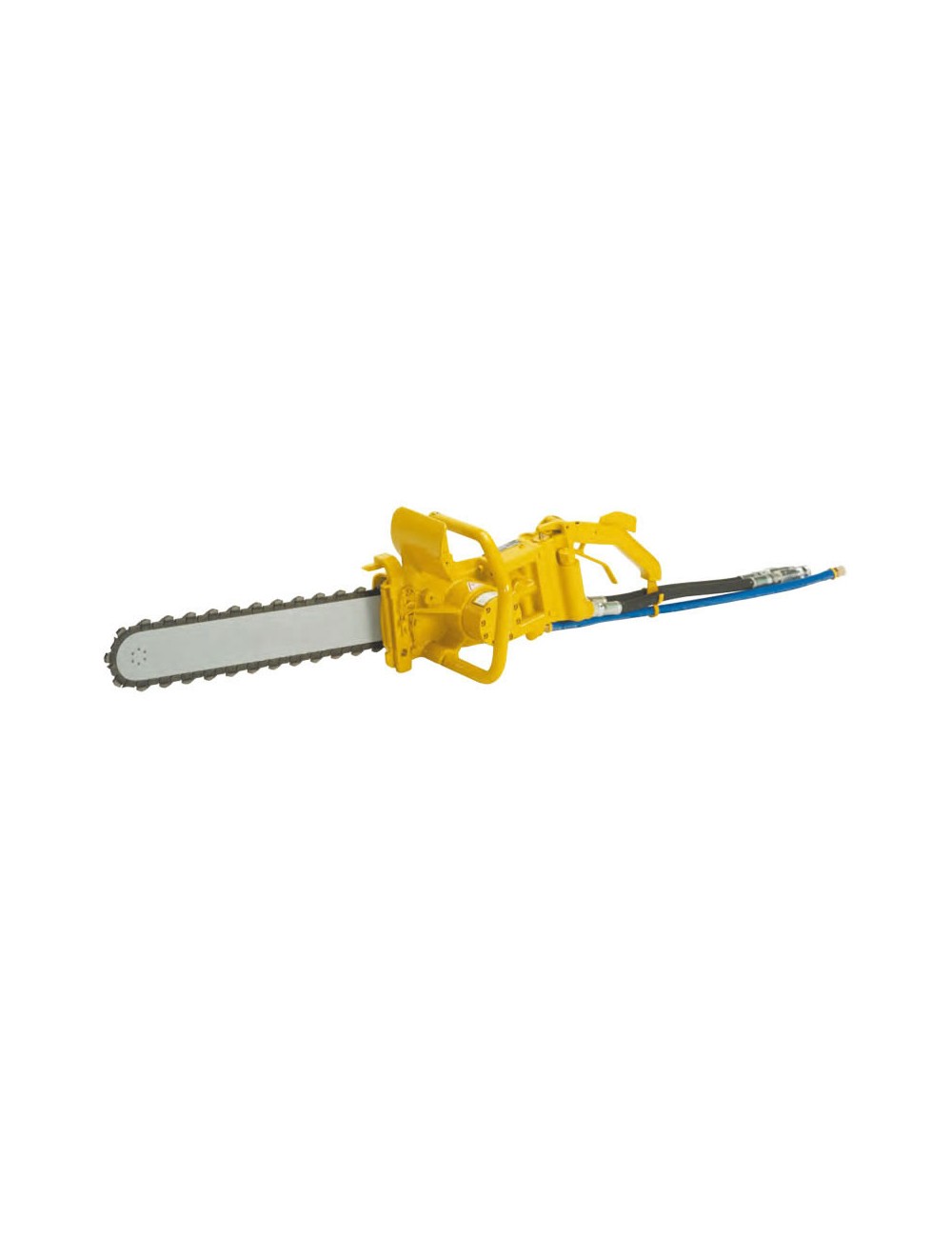

DS11 CHAIN SAW

The DS11 Diamond Chain Saw is designed for cutting concrete underwater. It is suitable for cutting corners without overcuts and can cut walls up to 45 cm thick. Two bar lengths (38 cm and 45 cm) and two different types of chain are available. A minimum of 20 psi of water pressure is required at the saw to cool and lubricate the bar and chain.

The DS11 Diamond Chain Saw is designed for cutting concrete underwater. It is suitable for cutting corners without overcuts and can cut walls up to 45 cm thick.

Two bar lengths (38 cm and 45 cm) and two different types of chain are available. A minimum of 20 psi of water pressure is required at the saw to cool and lubricate the bar and chain.

Features:

• Cutting concrete, stone and brick.
• Ideal for deep, corner and smooth cuts.
• Three chain models available

Technical Specifications:

• Cutting Capacity: 15 or 18” / 38 or 45 cm.
• Chain Type: Diamond Impregnated Chain Segments
• Circuit Type: Open Center
• Flow Rate: 12 gpm / 45 lpm
• Working Pressure: 1000-2000 psi / 70-140 bar
• Pressure Relief: 2250 psi / 155 bar
• Weight (without bar/chain): 28 lbs / 12.7 kg
• Length (w/o bar / chain): 37 or 40” / 99 or 101.6 cm
• Width: 9” / 23 cm
• Cooling: Internal water channel
