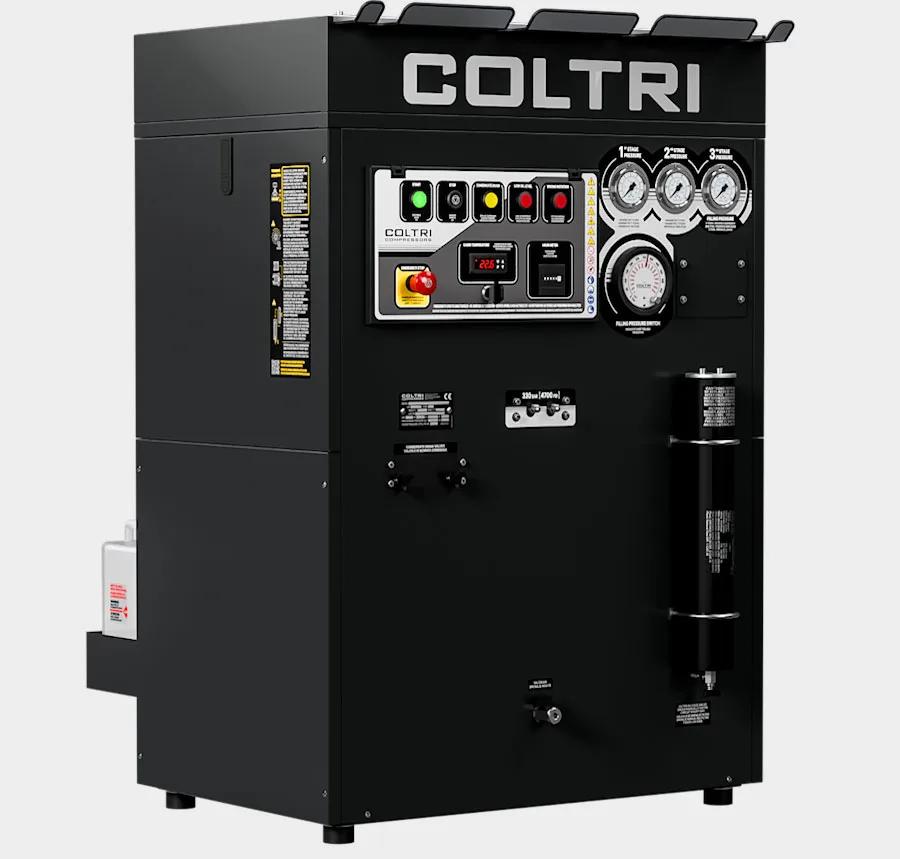

Coltri Super Silent TPS Series
Coltri Super Silent TPS Series
Regular price
$24,000.00
Regular price
Sale price
$24,000.00
Unit price
/
per
Couldn't load pickup availability
Standard Equipment
2 Cylinder connections of your choice of DIN 232, DIN 300 or INT/YOKE 232 bar
2 Filling hoses 1.2 m long
Pressure holding valve
Interstage control manometers
Filter system Maxifilter
Inside cabin temperature with automatic shutdown
Automatic rotation direction control
Pressure switch with automatic shutdown
Oil level control with automatic shutdown
Automatic condensate drain with conveying system into the canister
Frame color Black RAL 9005
Technical Specifications
| Specification | Details |
|---|---|
| Gas Type | Breathing Air EN 12021 / Nitrox up to 40% O₂ / Helium / Nitrogen |
| Suction Pressure | Atmospheric, max. 300 mbar |
| Pressure Rating | 250 bar / 330 bar / 360 bar |
| Operating Pressure | 232 bar / 300 bar / 330 bar |
| Maximum Working Pressure | 420 bar |
| Allowable Temperature Range | -10°C to +40°C |
| Allowable Altitude Range | 0 to 1,500 m above sea level |
| Maximum Allowed Inclination | 6° |
| Design | Soundproof cabinet with sound-absorbing material |
| Standard Operating Voltage | 400 V, 50 Hz |
| Optional Operating Voltages | 230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz |
| 60 Hz Motor Rating | On three-phase electric motors operating at 60 Hz, power (kW / hp) increases by 20% |
| Lubricant | Coltri ST 755 Synthetic Oil |
| Oil Change Interval | 1 year or 1,000 operating hours |
| Frame Construction | Steel |
| Frame Color | Black, RAL 9005 |
| Frame Finish | Powder-coated, scratch-resistant |
