Coltri Mark III Silent TPS Series
Coltri Mark III Silent TPS Series
Regular price
$18,560.00
Regular price
Sale price
$18,560.00
Unit price
/
per
Couldn't load pickup availability

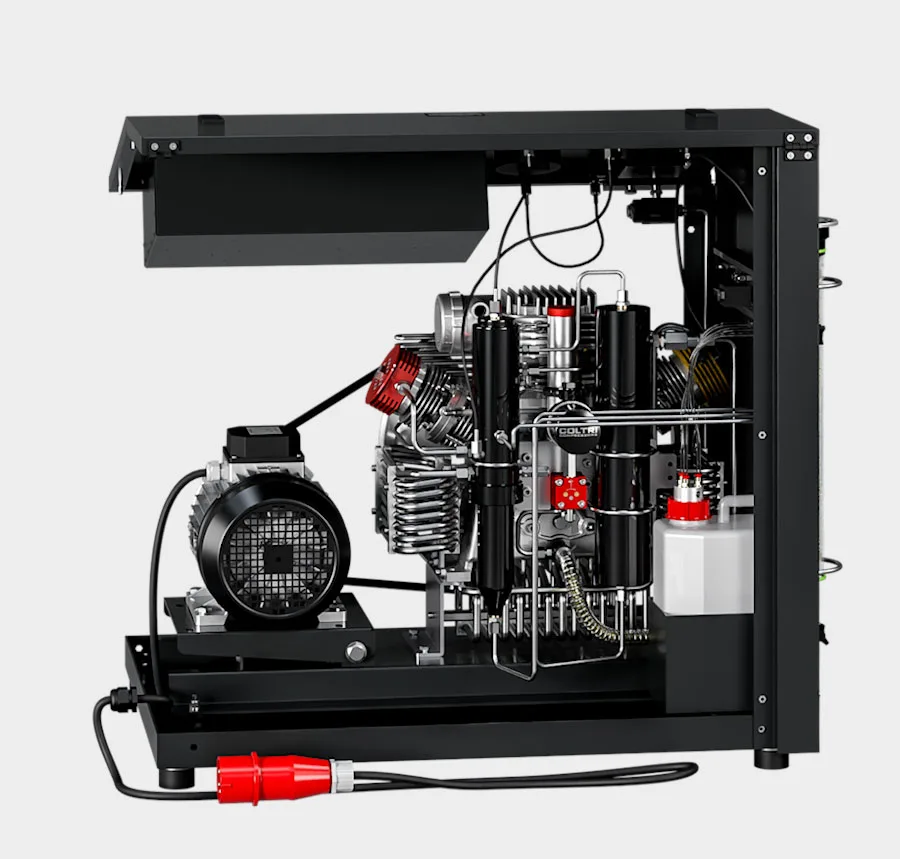

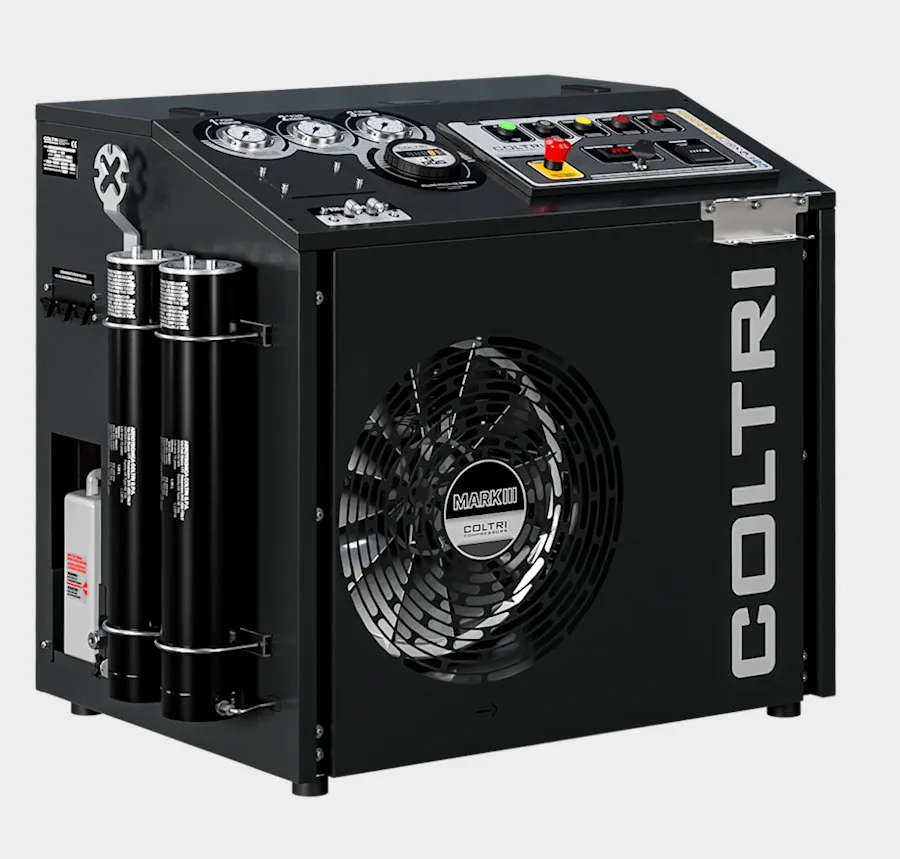

MARK ІІІ Silent TPS line includes a series of uncompromising models designed for intensive use in hot, poorly ventilated environments or in tropical countries. Designed with an improved cooling system and a filtering system with two Hyperfilters, they are powered by a three-phase electric motor and equipped with four different pumping units, all in TPS (Tropical Plus Superdry) version. They are available with function monitoring systems and an electrical panel for automatic compressor shutdown.
- All-in-one solution: Quiet, high-heat, and military-grade performance.
- Tropical Plus Superdry (TPS) system guarantees pure, dry air in humid climates.
- A flagship model representing the pinnacle of compressor technology.
The Coltri Mark III Silent TPS Series HP High Pressure Air Compressors represent the ultimate no-compromise solution. A key benefit is its versatility; you get silent operation AND elite performance in high-heat environments. Here's a fact: the integrated TPS system is engineered to produce pure, Grade E air in temperatures up to 113°F (45°C). At American Diving Supply, we offer this top-tier military diving gear for the most demanding missions. It's the pinnacle of professional diving equipment and essential for any serious commercial diving equipment inventory. Find these elite diving compressors when you shop for diving equipment online.
- Advanced electronic control panel for complete system management.
- Dual pre-separators and oversized filtration for ultimate air purity.
- Thermostatically controlled cooling fan for optimal efficiency.
Absolutely. Here is a cleaned-up, professional version you can use in a quotation, technical datasheet, or sales order. I’ve kept the specifications as provided.
Standard Equipment
-
2 cylinder connections, customer’s choice of:
- DIN 232 bar
- DIN 300 bar
- INT/YOKE 232 bar
- 2 filling hoses, 1.2 m long
- Pressure holding valve
- Interstage control pressure gauges
- Dual PED-certified Hyperfilter filtration system
- Internal cabinet temperature monitoring with automatic shutdown
- Automatic condensate drain
- Automatic rotation direction control
- Electronic pressure switch with automatic shutdown
- Oil level monitoring with automatic shutdown
- Oil pump with filter and pressure gauge
- Automatic condensate drain with conveying system into collection canister
- Frame color: Black RAL 9005
Technical Specifications
| Specification | Details |
|---|---|
| Gas Type | Breathing Air EN 12021 / Nitrox up to 40% O₂ / Helium / Nitrogen |
| Suction Pressure | Atmospheric, max. 300 bar* |
| Pressure Rating | 250 bar / 330 bar / 360 bar |
| Operating Pressure | 232 bar / 300 bar / 330 bar |
| Maximum Working Pressure | 232 bar / 420 bar |
| Allowable Temperature Range | -10°C to +40°C |
| Allowable Altitude Range | 0 to 1,500 m above sea level |
| Maximum Allowed Inclination | 15° |
| Design | Soundproof cabinet with sound-absorbing material |
| Standard Operating Voltage | 400 V, 50 Hz |
| Optional Operating Voltages | 230 V, 50 Hz / 440 V, 60 Hz / 230 V, 60 Hz |
| 60 Hz Motor Rating | On three-phase electric motors operating at 60 Hz, power (kW / hp) increases by 20% |
| Oil | Coltri ST 755 Synthetic Oil |
| Oil Change Interval | 1 year / 1,000 operating hours |
| Frame | Steel, Black RAL 9005, powder-coated, scratch-resistant |
