FIBRON

300 ft Fibro-lite 3 Part Umbilical DSLS001 (Pneumo, Breathing, Communications Cable)

300 ft Fibro-lite 3 Part Umbilical DSLS001 (Pneumo, Breathing, Communications Cable)

$2,500.00
$2,500.00
Sale Sold out

SBMP140208FBN

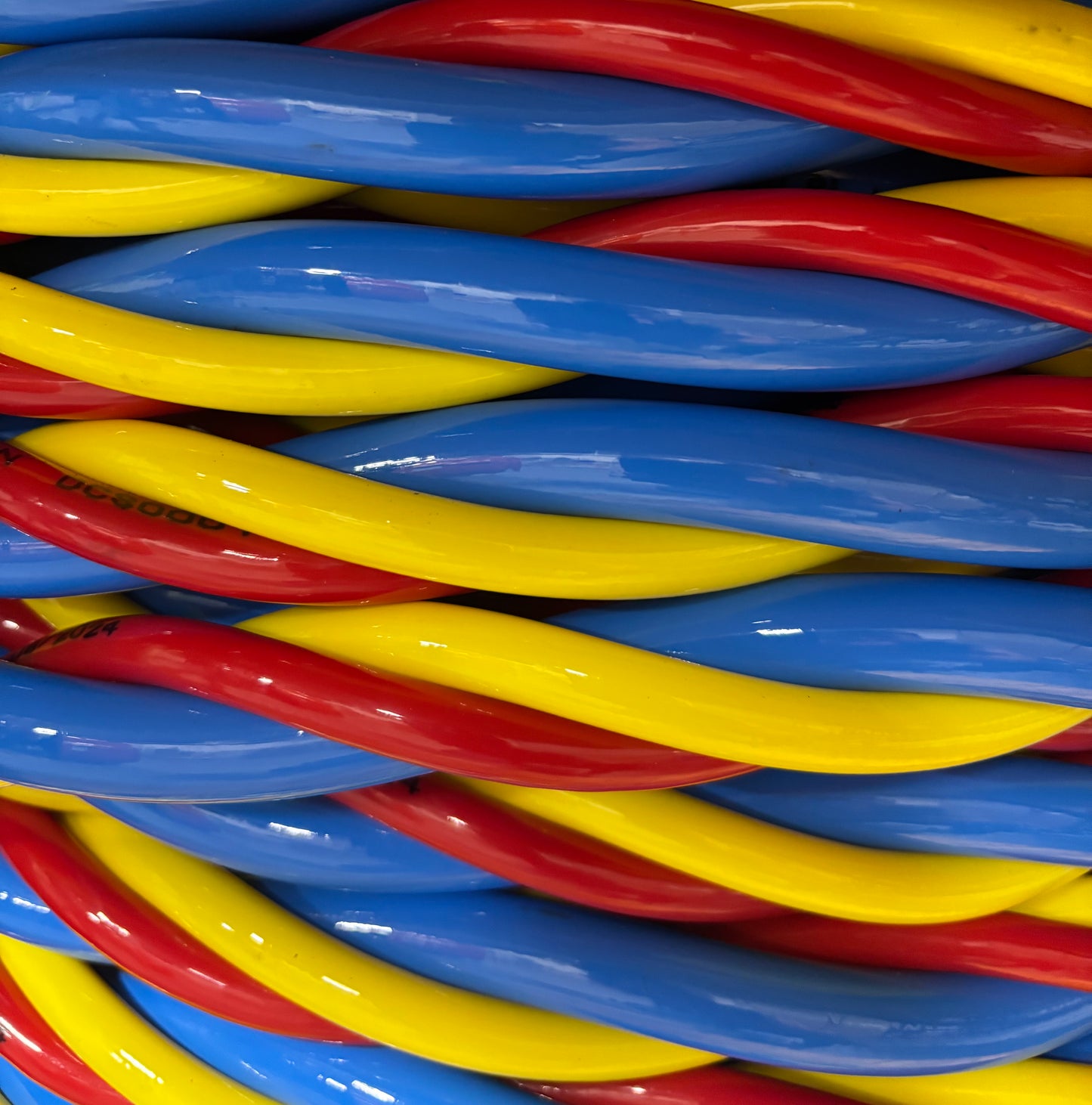

Umbilical Assembly Details

1 off type FLT06/R 3/8" NB Fibrolite gas hose. Colour: Blue, includes JIC 06-04OXY once on diver and surface end.

1 off type FLT04 1/4" NB Fibrolite pneumo hose. Colour: Yellow. includes JIC 04-04OXY on surface end.

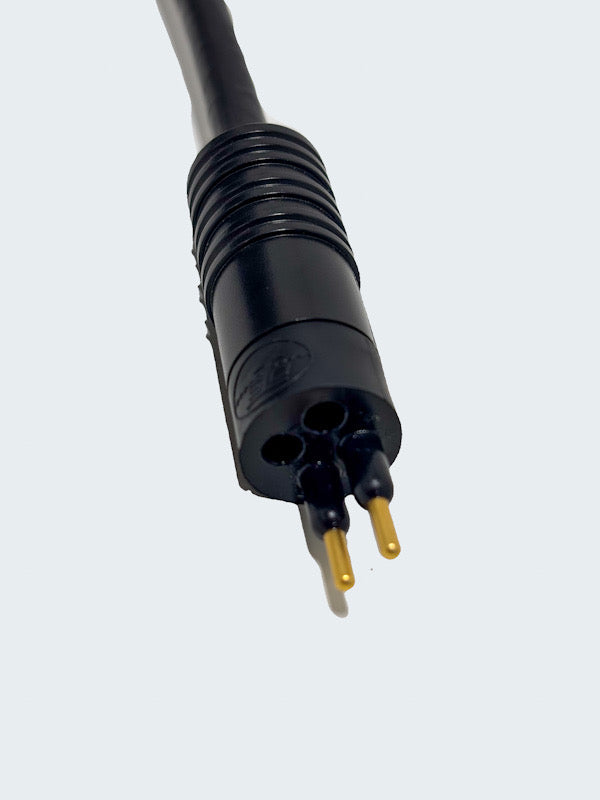

1 off type DCS0001 two-pair comm's cable. Colour: Red. Includes Dual Bana Plug on surface end and, HI-Use OTS-4P Connector on diver end.

The Umbilical also includes.

  • 2x Snap Shackle with Welded D- Ring
  • Certificate of Conformance
  • Tag with serial number, certificate number and date of manufacture.



View full details

  • FLT04 NEUMO Hose

    • Diameter | 1/4’
    • Working Pressure | 400 psi
    • Burst Pressure | 1,600 psi

  • AIR Hose FLT06R:

    • Diameter: 3/8’
    • Working Pressure | 500 psi
    • Burst Pressure | 2,000 psi

  • Communication cable DCS0001:

    Consisting of 2 x 0.50mm cables, 2 pairs complete with polyethylene insulation (0.39 mm
    nominal thickness).
    (0.39 mm nominal thickness) shielded with polyester/aluminium foil tape and tinned
    copper drain wire.
    tinned copper drain wire. Integral polyester strength braid (500kgs mbs)
    with red po liurethane outer jacket (1.40mm nominal thickness).
