100mts / 328 ft Fibro-lite 4 Part Umbilical DSL0082 (Pneumo, Breathing, Communications Cable, Video/Light)

100mts / 328 ft Fibro-lite 4 Part Umbilical DSL0082 (Pneumo, Breathing, Communications Cable, Video/Light)

$4,681.07
$4,681.07
Sale Sold out

SBMP140256FBN

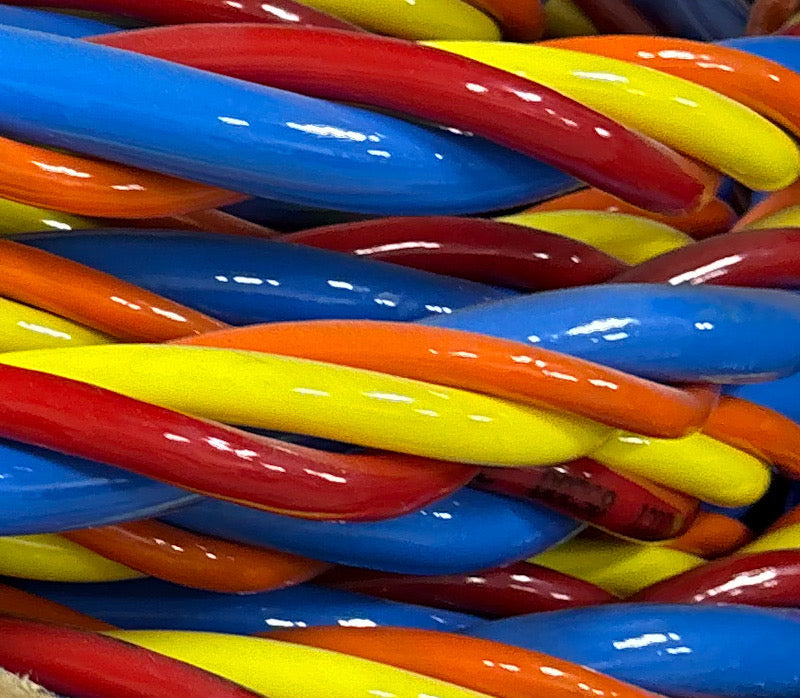

Umbilical Assembly Details

1 off type FLT06/R 3/8" NB Fibrolite gas hose. Colour: Blue, includes JIC 06-04OXY once on diver and surface end.

1 off type FLT04 1/4" NB Fibrolite pneumo hose. Colour: Yellow. includes JIC 04-04OXY on surface end.

1 off type DCS0001 two-pair comm's cable. Colour: Red. Includes Dual Bana Plug on surface end and, RMG-4-FS Connector on diver end.

1 off type DC0340 video cable. Colour: Orange. (This cable works for X-Vision and Outland)

The Umbilical also includes.

  • 2x Snap Shackle with Welded D- Ring
  • Certificate of Conformance
  • Tag with serial number, certificate number and date of manufacture.



View full details

  • FLT04 NEUMO Hose

    • Diameter | 1/4’
    • Working Pressure | 400 psi
    • Burst Pressure | 1,600 psi

  • AIR Hose FLT06R:

    • Diameter: 3/8’
    • Working Pressure | 500 psi
    • Burst Pressure | 2,000 psi

  • Communication cable DCS0001:

    Consisting of 2 x 0.50mm cables, 2 pairs complete with polyethylene insulation (0.39 mm
    nominal thickness).
    (0.39 mm nominal thickness) shielded with polyester/aluminium foil tape and tinned
    copper drain wire.
    tinned copper drain wire. Integral polyester strength braid (500kgs mbs)
    with red po liurethane outer jacket (1.40mm nominal thickness).

  • Video cable DC0340

    • 1 cable of 0.34 mm shielded twisted pair with polyethylene insulation (0.30 mm
    nominal thickness). Polyethylene insulation (0.30 mm nominal thickness). Aluminium
    / polyester foil tape shielding and copper drainage.
    • aluminium / polyester tape shielding and tinned copper drainage.

    • 2 x 1.34mm multi-core cable with polyethylene insulation. Individual power (0.30
    mm nominal weight).

    • 1 x 75-ohm coaxial cable.

    • Silicone rubber vacuum fill assembly.

    • Overall polyester/aluminium screen and earth wire (0.50 mm 2).

    • Orange polyurethane outer jacket (1.45 mm nominal thickness).
